Friday, July 27, 2012

Google Chrome Extension for PrimeFaces showcase

I've created a Google Chrome Extension with quick links to the components in the last PrimeFaces Showcase. Links are sorted alphabetically. Everybody who likes an alphabetic order of PrimeFaces components can download the file pfchromeextension.crx from here. Simple drag and drop this file into the browser window and confirm the installation. You will see a small clickable "PrimeFaces icon" on the top right corner. I've also corrected some link names in comparison to original ones. Enjoy!


I was also thinking about two links for each component - one for showcase and one for the corresponding page in the User's Guide (PDF). For instance, Accordion (demo | pdf). As far as I know, Google Chrome has a built-in PDF reader and can open PDF on every page you specify in URL. What do you think?

Thursday, July 26, 2012

Merging with Subversion and IntelliJ IDEA

A common task - merge software changes from trunk with branch and vice versa - is an easy task with IntelliJ IDEA. There are a couple of ways how to do this in IDEA. Recently, I found the easiest way in my opinion. Assume, we would like to merge changes in trunk with branch.

1) Check out the branch as a working copy.
2) Go to the menu "VCS" --> "Intergrate Project".
3) Select the checked out branch project on the left side.
4) On the right side, select branch URL and revision number, where you want to merge to, for the "Source 1".
5) On the right side, select trunk URL (revision HEAD), where you want to merge from, for the "Source 2".
6) Uncheck "Use ancestry" and click the "OK" button.


You're done. Review made changes in the "Changes" view and commit them. Happy merging!

Saturday, July 21, 2012

Event-based communication in JSF. New-school approach.

In the last post, we learnt event-based communication on basis of Observer / Event Listener and Mediator patterns. Due to their shortcomings I would like to show more efficient ways for event-based communication. We will start with Google Guava EventBus and end up with CDI (Contexts and Dependency Injection for the Java EE platform).

Guava EventBus
Google Guava library has an useful package eventbus. The class EventBus allows publish-subscribe-style communication between components without requiring the components to explicitly register with one another. Because we develop web applications, we should encapsulate an instance of this class in a scoped bean. Let's write EventBusProvider bean.
public class EventBusProvider implements Serializable {

    private EventBus eventBus = new EventBus("scopedEventBus");

    public static EventBus getEventBus() {
        // access EventBusProvider bean
        ELContext elContext = FacesContext.getCurrentInstance().getELContext();
        EventBusProvider eventBusProvider =
            (EventBusProvider) elContext.getELResolver().getValue(elContext, null, "eventBusProvider");

        return eventBusProvider.eventBus;
    }
}
I would like to demonstrate all main features of Guava EventBus in only one example. Let's write the following event hierarchy:
public class SettingsChangeEvent {

}

public class LocaleChangeEvent extends SettingsChangeEvent {

    public LocaleChangeEvent(Object newLocale) {
        ...
    }
}

public class TimeZoneChangeEvent extends SettingsChangeEvent {

    public TimeZoneChangeEvent(Object newTimeZone) {
        ...
    }
}
The next steps are straightforward. To receive events, an object (bean) should expose a public method, annotated with @Subscribe annotation, which accepts a single argument with desired event type. The object needs to pass itself to the register() method of EventBus instance. Let's create two beans:
public MyBean1 implements Serializable {

    @PostConstruct
    public void initialize() throws Exception {
        EventBusProvider.getEventBus().register(this);
    }

    @Subscribe
    public void handleLocaleChange(LocaleChangeEvent event) {
        // do something
    }

    @Subscribe
    public void handleTimeZoneChange(TimeZoneChangeEvent event) {
        // do something
    }
}

public MyBean2 implements Serializable {

    @PostConstruct
    public void initialize() throws Exception {
        EventBusProvider.getEventBus().register(this);
    }

    @Subscribe
    public void handleSettingsChange(SettingsChangeEvent event) {
        // do something
    }
}
To post an event, simple provide the event object to the post() method of EventBus instance. The EventBus instance will determine the type of event and route it to all registered listeners.
public class UserSettingsForm implements Serializable {

    private boolean changed;

    public void localeChangeListener(ValueChangeEvent e) {
        changed = true;

        // notify subscribers
        EventBusProvider.getEventBus().post(new LocaleChangeEvent(e.getNewValue()));
    }

    public void timeZoneChangeListener(ValueChangeEvent e) {
        changed = true;

        // notify subscribers
        EventBusProvider.getEventBus().post(new TimeZoneChangeEvent(e.getNewValue()));
    }

    public String saveUserSettings() {
        ...

        if (changed) {
            // notify subscribers
            EventBusProvider.getEventBus().post(new SettingsChangeEvent());

            return "home";
        }
    }
}
Guava EventBus allows to create any listener that is reacting for many different events - just annotate many methods with @Subscribe and that's all. Listeners can leverage existing events hierarchy. So if Listener A is waiting for events A, and event A has a subclass named B, this listener will receive both type of events: A and B. In our example, we posted three events: SettingsChangeEvent, LocaleChangeEvent and TimeZoneChangeEvent. The handleLocaleChange() method in the MyBean1 will only receive LocaleChangeEvent. The method handleTimeZoneChange() will only receive TimeZoneChangeEvent. But look at the method handleSettingsChange() in the MyBean2. It will receive all three events!

As you may see, a manually registration is still needed (EventBusProvider.getEventBus().register(this)) and the problem with scoped beans, I mentioned in the previous post, is still existing. We should be aware of scoping of EventBusProvider and scoping of publish / subscriber beans. But as you may also see, we have some improvements in comparison to the Mediator pattern: no special interfaces are needed, the subscriber's method names are not fix defined, multi-listeners are possible too, no effort to manage registered instances, etc. Last but not least - asynchronous AsyncEventBus and subscription to DeadEvent (for listening for any events which were dispatched without listeners - handy for debugging). Follow this guide please to convert an existing EventListener-based system to EventBus-based one.

CDI (Contexts and Dependency Injection)
Every JEE 6 compliant application server supports CDI (the JSR-299 specification). It defines a set of complementary services that help improve the structure of application code. The best-known implementations of CDI are OpenWebBeans and JBoss Weld. Events in CDI allow beans to interact with no dependency at all. Event producers raise events that are delivered to event observers by the container. This basic schema might sound like the familiar Observer / Observable pattern, but there are a couple of benefits.
  • Event producers and event observers are decoupled from each other.
  • Observers can specify a combination of "selectors" to narrow the set of event notifications they will receive.
  • Observers can be notified immediately or with delaying until the end of the current transaction.
  • No headache with scoping by conditional observer methods (remember problem of scoped beans and Mediator / EventBus?).
Conditional observer methods allow to obtain the bean instance that already exists, only if the scope of the bean that declares the observer method is currently active, without creating a new bean instance. If the observer method is not conditional, the corresponding bean will be always created. You are flexible!

CDI event mechanism is the best approach for the event-based communication in my opinion. The subject is complex. Let's only show the basic features. An observer method is a method of a bean with a parameter annotated @Observes.
public MyBean implements Serializable {

    public void onLocaleChangeEvent(@Observes Locale locale) {
        ...
    }
}
The event parameter may also specify qualifiers if the observer method is only interested in qualified events - these are events which have those qualifiers.
public void onLocaleChangeEvent(@Observes @Updated Locale locale) {
    ...
}
An event qualifier is just a normal qualifier, defined using @Qualifier. Here is an example:
@Qualifier
@Target({FIELD, PARAMETER})
@Retention(RUNTIME)
public @interface Updated {}
Event producers fire events using an instance of the parametrized Event interface. An instance of this interface is obtained by injection. A producer raises events by calling the fire() method of the Event interface, passing the event object.
public class UserSettingsForm implements Serializable {

    @Inject @Any Event<Locale> localeEvent;

    public void localeChangeListener(ValueChangeEvent e) {
        // notify all observers
        localeEvent.fire((Locale)e.getNewValue());
    }
}
The container calls all observer methods, passing the event object as the value of the event parameter. If any observer method throws an exception, the container stops calling observer methods, and the exception is re-thrown by the fire() method. @Any annotation above acts as an alias for any and all qualifiers. You see, no manually registration of observers is necessary. Easy? Specifying other qualifiers at the injection point is simple as well:
// this will raise events to observers having parameter @Observes @Updated Locale
@Inject @Updated Event<Locale> localeEvent;
You can also have multiple event qualifiers. The event is delivered to every observer method that has an event parameter to which the event object is assignable, and does not have any event qualifier except the event qualifiers matching those specified at the Event injection point. The observer method may have additional parameters, which are injection points. Example:
public void onLocaleChangeEvent(@Observes @Updated Locale locale, User user) {
    ...
}
What is about a specifying the qualifier dynamically? CDI allows to obtain a proper qualifier instance by means of AnnotationLiteral. This way, we can pass the qualifier to the select() method of Event. Example:
public class DocumentController implements Serializable {

    Document document;

    @Inject @Updated @Deleted Event<Document> documentEvent;

    public void updateDocument() {
        ...
        // notify observers with @Updated annotation
        documentEvent.select(new AnnotationLiteral<Updated>(){}).fire(document);
    }

    public void deleteDocument() {
        ...
        // notify observers with @Deleted annotation
        documentEvent.select(new AnnotationLiteral<Deleted>(){}).fire(document);
    }
}
Let's talk about "conditional observer methods". By default, if there is no instance of an observer in the current context, the container will instantiate the observer in order to deliver an event to it. This behaviour isn't always desirable. We may want to deliver events only to instances of the observer that already exist in the current context. A conditional observer is specified by adding receive = IF_EXISTS to the @Observes annotation.
public void onLocaleChangeEvent(@Observes(receive = IF_EXISTS) @Updated Locale locale) {
    ...
}
Read more about Scopes and Contexts here. In this short post we can not talk more about further features like "event qualifiers with members" and "transactional observers". I would like to encourage everybody to start learn CDI. Have much fun!

Edit: Found today a great CDI specific possibility how to obtain a list of listeners for an event. Solution: Inject BeanManager (allows to interact directly with the container) and call
<T> java.util.Set<ObserverMethod<? super T>> resolveObserverMethods(T event, java.lang.annotation.Annotation... qualifiers)

Friday, July 20, 2012

Tooltip on Steroids

PrimeFaces published today the blog post PickList on Steroids. I have decided to publish a similar post Tooltip on Steroids. PrimeFaces Extensions "injected steroids" into the Tooltip component. It's hefty strength now. This week I implemented three additional powerful features which I would like to share in this post.

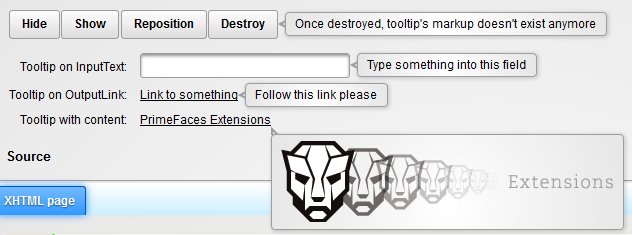

Auto shown tooltips
The autoShow flag enables showing tooltips automatically after page loading. Auto shown tooltips are shown directly after the page has been loaded. Position of an auto shown tooltip is adjusted automatically when the window is resized. This feature is useful when you want to have a wizard or introduction tour with several infos showing when a site is entered the first time. Google and Facebook have a similar concept when introducing new features. Take a look please.


Using:
...
<p:inputText id="txt" title="Type something into this field"/>
<pe:tooltip for="txt" autoShow="true" myPosition="left center" atPosition="right center"/>
...

Mouse tracking
Mouse tracking enables tooltip's positioning in relation to the mouse. The tooltip follows mouse when mouse moving. Take a look please.


Using:
...
<h:panelGroup id="demoMouse" layout="block" ...>
    Hover over this box to see mouse tracking in action
</h:panelGroup>
<pe:tooltip for="demoMouse" value="I position myself at the current mouse position"
            mouseTracking="true" myPosition="top left" adjustX="10" adjustY="10"/>
...
As you might see, the tooltip also became new attributes adjustX and adjustY to control tooltip's coordinates related to the target element. These are positive or negative pixel values by which to offset the tooltip in the horizontal / vertical planes (x-axis / y-axis).

Client-side API
Tooltip became new widget's methods as well: hide(), show(), reposition() and destroy(). Hide() / show() allow to hide or show tooltips at runtime. Reposition() makes possible to adjust tooltip's position. You can use this method during scrolling, for instance. Destroy() removes tooltip's markup from the DOM. After that the tooltip is not available anymore.

Using:
...
<p:inputText id="txt" title="Type something into this field"/>
<pe:tooltip for="txt" autoShow="true" widgetVar="tipWidget"/>

<p:commandButton type="button" value="Hide" onclick="tipWidget.hide()"/>
<p:commandButton type="button" value="Show" onclick="tipWidget.show()"/>
...

Monday, July 16, 2012

Event-based communication in JSF. Old-school approach.

Web applications written in JSF consist of beans which interact among each other. Communication between beans is one of the main design patterns when developing a web application. Sometimes, one bean needs to send events to other beans to inform them about some changes or whatever else. We can normally inject a managed or Spring bean into the property of another bean, so that another bean can notify injected bean directly. Injection is good, but it was not introduced for the purpose of communication. It is far away from a dynamic loosely coupled system where each bean doesn't know about other beans. In a loosely coupled system we need a good event-based communication mechanism. This post will cover two design patterns: Observer / Event Listener and Mediator pattern. These patters are widely used in many web applications nowadays, but they have disadvantages. The system is not really loosely-coupled with them. There are much better and modern approaches. Therefore, I wrote "Old-school approach" in the post name. New-school approaches will be disclosed in the next post.

Observer / Event Listener
We will start with the Observer (also called as Event Listener) pattern. An object, called the subject or observable object, maintains a list of its dependents, called observers, and notifies them automatically of any state changes. In Java there are classes java.util.Observer and java.util.Observable which help to implement this pattern. Other related constructs for event-based communication by means of this pattern are the class java.util.EventObject and the interface java.util.EventListener. Let's start coding. Assume we have a I18N web application and user can choose a language (Locale) somewhere in user settings. Assume we have a bean called UserSettingsForm which is responsible for user settings. Some session scoped beans can keep I18N text / messages, so that when user changes the current languages, a reset of previous text / messages in the last selected language is needed. Firstly, we need a LocaleChangeEvent.
public class LocaleChangeEvent extends EventObject {

    Locale locale;

    public LocaleChangeEvent(Object source, Locale locale) {
        super(source);
        this.locale = locale;
    }

    public Locale getLocale() {
        return locale;
    }
}
Secondly, we need an interface LocaleChangeListener.
public interface LocaleChangeListener extends EventListener {

    void processLocaleChange(LocaleChangeEvent event);
}
Our UserSettingsForm can manage now instances of type LocaleChangeListener by registring and notifying them.
@ManagedBean
@SessionScoped
public class UserSettingsForm implements Serializable {

    private Locale selectedLocale;
    private List<SelectItem> locales;
    private List<LocaleChangeListener> localeChangeListeners = new ArrayList<LocaleChangeListener>();

    public void addLocaleChangeListener(LocaleChangeListener listener) {
        localeChangeListeners.add(listener);
    }

    public void localChangeListener(ValueChangeEvent e) {
        ...
        // notify listeners
        LocaleChangeEvent lce = new LocaleChangeEvent(this, this.selectedLocale);
        for (LocaleChangeListener lcl : localeChangeListeners) {
            lcl.processLocaleChange(lce);
        }
    }
    ...
}
The method localChangeListener() is an JSF ValueChangeListener and can be applied e.g. in h:selectOneMenu. Every bean which implements LocaleChangeListener should be registered by UserSettingsForm in order to be notified by locale changes.
@ManagedBean
@SessionScoped
public MyBean implements LocaleChangeListener, Serializable {

    // UserSettingsForm can be injected e.g. via @ManagedProperty annotation or via Spring facility
    private UserSettingsForm userSettingsForm;

    @PostConstruct
    public void initialize() {
        userSettingsForm.addLocaleChangeListener(this);
    }

    public void processLocaleChange(LocaleChangeEvent event) {
        // reset something related to I18N data
        ...
    }
}
In terms of Observer pattern the UserSettingsForm is Observable and instances of LocaleChangeListener (like MyBean) are Observers. The discussed pattern comes with some important issues that you need to be aware of. Beans are tightly coupled. There are a lot of manually work to regsiter beans. Beans have to implement defined interfaces. If you have a bean informed by 100 semantic different changes, it has to implement 100 interfaces. It is not possible to notify a subset of registered listeners - always all listeners get notified even if they don't need to be notified. Last but not least - memory management issue. Martin Fowler wrote "Assume we have some screens observing some domain objects. Once we close a screen we want it to be deleted, but the domain objects actually carry a reference to the screen though the observer relationship. In a memory-managed environment long lived domain objects can hold onto a lot of zombie screens, resulting in a significant memory leak."

Mediator
The Mediator pattern improves the event-based communication in comparison to the Observer / Event Listener pattern. With the mediator pattern, communication between objects is encapsulated with a mediator object. Objects no longer communicate directly with each other, but instead communicate through the mediator. This reduces dependencies between communicating objects. We will see how it works for JSF-Spring beans (in examples above were standard managed beans). We will implement a Mediator class to manage the communication between scoped beans. It is important to understand that a bean only can notify another beans having broader scope(s). A view scoped bean can notify view, session and application scoped beans, but not request scoped beans with the narrower scope. Follow this rule to avoid troubles. This is a nature of scoped bean - you might remember that you can always inject a bean of wider scope into a bean of narrower scope, but not vice versa. To start working with Mediator we will introduce two interfaces MediatorEvent, MediatorListener and the centric class Mediator.
public interface MediatorEvent {
    ...
}

public interface MediatorListener {

    public void listenToEvent(MediatorEvent event);
}

public class Mediator implements Serializable {

    private Collection<MediatorListener> collaborators = new HashSet<MediatorListener>();

    public static Mediator getCurrentInstance() {
        // access Mediator bean by JSF-Spring facility
        return ContextLoader.getCurrentWebApplicationContext().getBean("mediator");
    }

    public void fireEvent(MediatorEvent event) {
        for (MediatorListener mediatorListener : collaborators) {
            mediatorListener.listenToEvent(event);
        }
    }

    public void addCollaborator(MediatorListener collaborator) {
        collaborators.add(collaborator);
    }

    public void removeCollaborator(MediatorListener collaborator) {
        collaborators.remove(collaborator);
    }
}
Mediator is a scoped bean which can register and notify collaborators. Collaborators register themself by Mediator. In Spring, a bean can implement the interface InitializingBean, so that the method afterPropertiesSet() will be called automatically after the bean's instantiation. This is similar to @PostConstruct. afterPropertiesSet() is a right place for such bean to register itself by Mediator. The bean should also implement MediatorListener in order to be notified (see listenToEvent()).
public MyBean implements MediatorListener, InitializingBean, Serializable {

    public void afterPropertiesSet() throws Exception {
        ...
        Mediator.getCurrentInstance().addCollaborator(this);
    }

    @Override
    public void listenToEvent(MediatorEvent event) {
        if (event instanceof LocaleChangeEvent) {
            // do something
        }
    }
}
We will use the same scenario with UserSettingsForm and locale changing. Beans registered by Mediator will be notified by fireEvent().
public class LocaleChangeEvent implements MediatorEvent {
    ...
}

public class UserSettingsForm implements Serializable {

    private Locale selectedLocale;
    private List<SelectItem> locales;

    public void localChangeListener(ValueChangeEvent e) {
        ...
        // notify listeners
        Mediator.getCurrentInstance().fireEvent(new LocaleChangeEvent(this, this.selectedLocale));
    }
    ...
}
Mediator pattern offers better coupling between beans, but they are still coupled with mediator. Further disadvantages: It is still necessary to register beans manually - see extra code Mediator.getCurrentInstance().addCollaborator(this). Every bean should still implement at least one MediatorListener and that brings another constraint - listenToEvent(). Every bean should implement this interface method! The probably biggest shortcoming of Mediator pattern in JSF is that it is a scoped bean. A view scoped Mediator would only work smoothly with view scoped beans. Registered view scoped beans are being removed automatically when the view scoped Mediator gets destroyed. Other scenarios can cause memory leaks or several issues. For instance, request scoped beans, registered by a view scoped Mediator, should be removed manually by calling removeCollaborator() (easy to forget). Session scoped beans should be registered by a session scoped Mediator, otherwise they will not be notified after destroying the view scoped Mediator. Etc, etc.

In the fact, the Mediator pattern is only one step better than a regular Observer / Event Listener concept. There are more flexible approaches where *any method* can catch thrown event and not only fix specified, like listenToEvent(). In the next post, we will see easy and unobtrusive ways how to catch multiply events by only one method and other advices.
